Description
| Technical Specifications | |
|---|---|
| Max. force | Push 6000N, Pull 4000N |
| No-load speed | 4-46 mm/s |
| Installation length | Stroke + 185mm |
| IP class | Max. IP54 |
| Noise level | ≤50 dB |
| Options | Manual hand crank when power off |

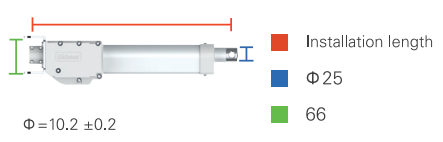

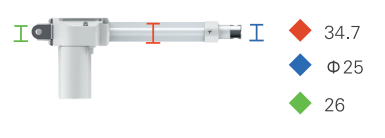

Dimension（mm）
Heading Style

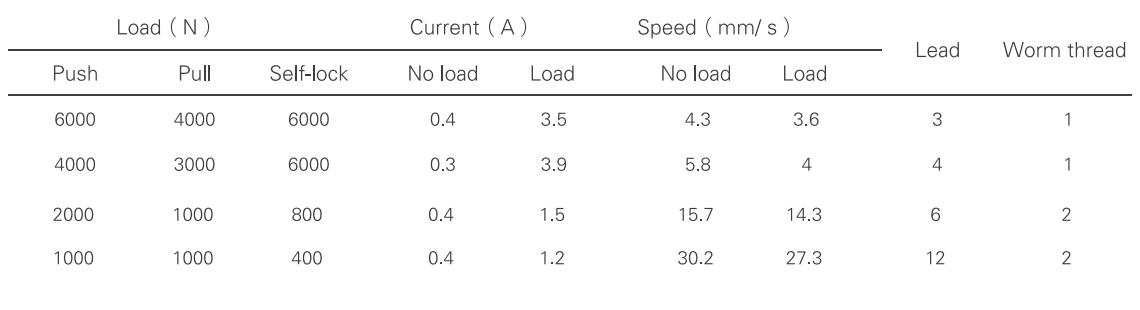

Speed & Force Comparison Table (3200rpm)
