Description
| Technical Specifications | |
|---|---|
| Max. Push Force | Push 8000N, Pull 4000N |
| No-Load Speed | 3.3 - 26 mm / s |
| Installation Dimension | Stroke + 155mm |
| Protection Type | IP20 |
| Noise Level | ≤50dB |
| Other options | Mechanical hand protection function, Hall sensor |
Certificates
Heading Style
IEC/EN60335; UL962; RoHS

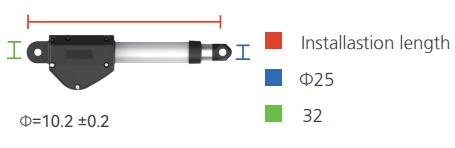

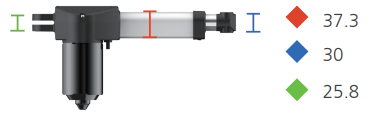

Dimension（mm）
Heading Style

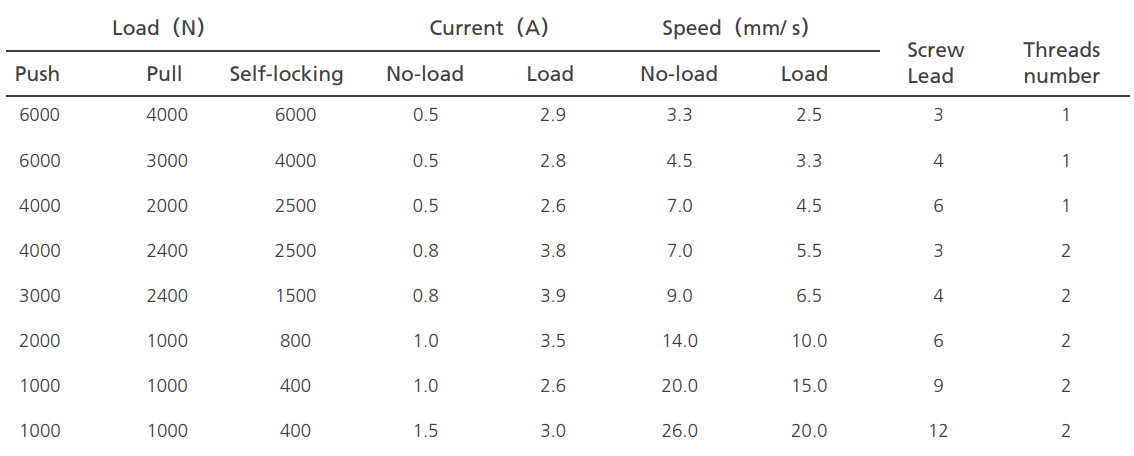

Speed and force（2600rpm）
