Description
| Technical Specifications | |
|---|---|
| Max. force | Push 6000N, Pull 3000N |
| No-load speed | 4-46 mm / s |
| Installation length | Stroke + 150 mm |
| IP class | Max. IP20 |
| Noise Level | ≤50 dB |
| Options | Mechanical hand protection function, Hall sensor |

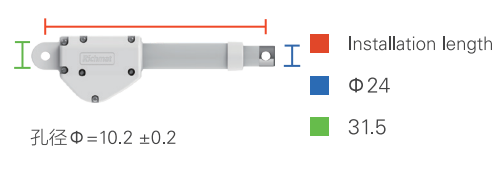

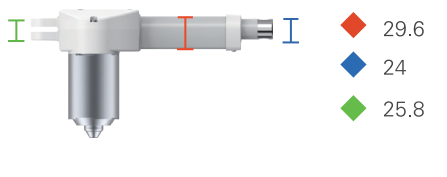

Dimension（mm）
Heading Style

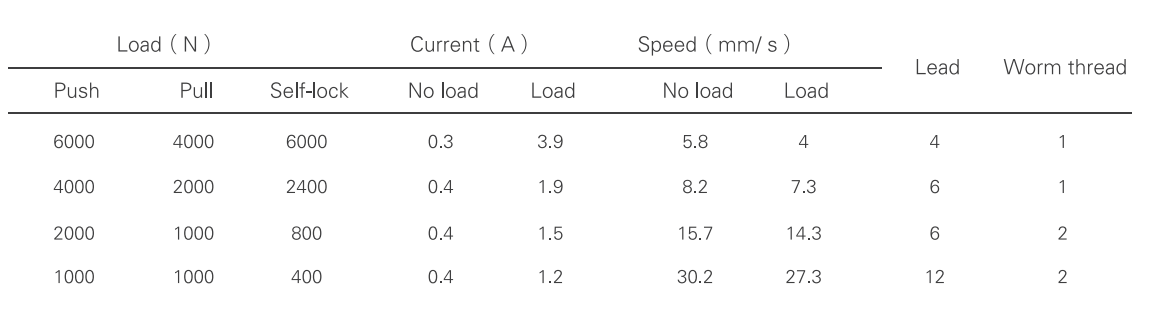

Speed and force Comparison Table（2600rpm）
