Description
| Technical Specifications | |
|---|---|
| Max. Push Force | Push 3000N, Pull 2000N |
| No-Load Speed | 6 - 42 mm / s |
| Installation Dimension | minimum 120mm |
| Protection Type | IP20 |
| Noise Level | ≤50dB |
| Other options | Hall sensor |
Certificates
Heading Style
IEC/EN60335; UL962; RoHS

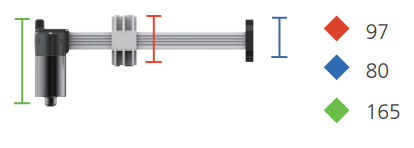

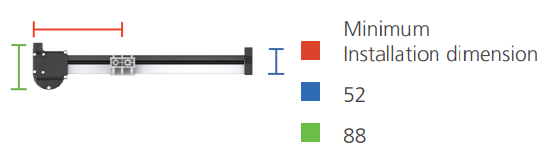

Dimension（mm）
Heading Style

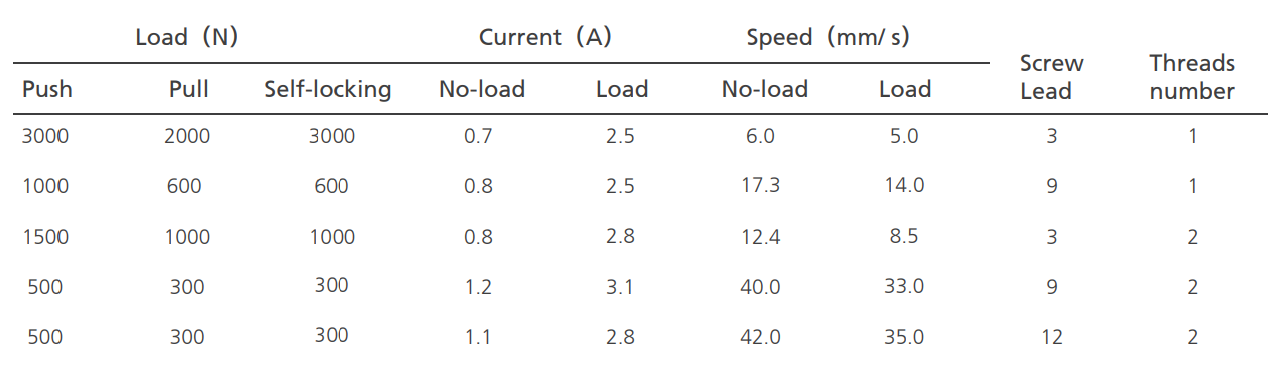

Speed and force（3400rpm）
