Description
The A1E Series weight lifting product represents the pinnacle of innovation and functionality in the realm of athletic equipment. Crafted from premium materials and engineered with precision, this product is tailored to meet the rigorous demands of professional athletes and dedicated fitness enthusiasts alike.
| Technical Specifications | |
|---|---|
| Max. Push force | 2 x 6000N |
| No-load speed | 4.3 mm / s |
| Installation dimension | 581 ± 1 mm |
| Protection type | IP20 |
| Noise Leve | ≤50dB |
| Other options | Hall sensor Linear actuators and various accessories |
Certificates
Heading Style
IEC/EN60335; EN55014; IEC60601; RoHS

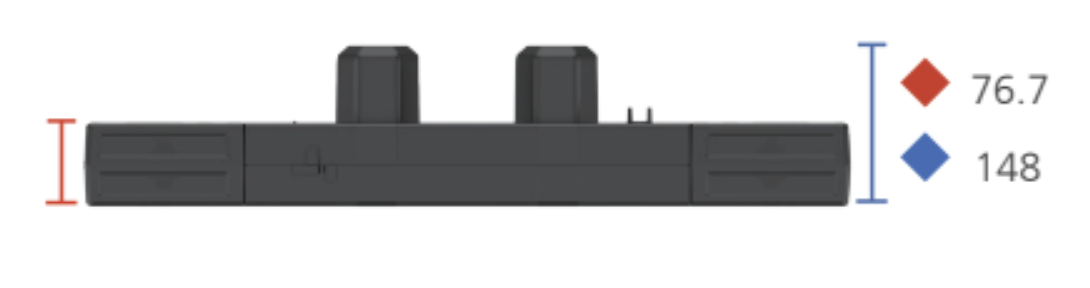

Dimension（mm）
Heading Style
Speed and force（3400rpm）
| Current（A） | Speed（mm / s） | |||
|---|---|---|---|---|
| Load | Head | Foot | Head | Foot |
| No-load | 1.01 | 0.83 | 4.99 | 4.92 |
| 4500N | 2.84 | 2.89 | 3.19 | 3.40 |
| 6000N | 3.44 | 3.47 | 2.78 | 2.87 |
